# 前言

因为组里来了新的前端，所以新开的项目就都准备用前后端分离的方式来做，原本还挺爽的，只用写自己接口就完事了，但是到了对接甲方 CAS 的时候就出了问题。

# CAS 认证流程

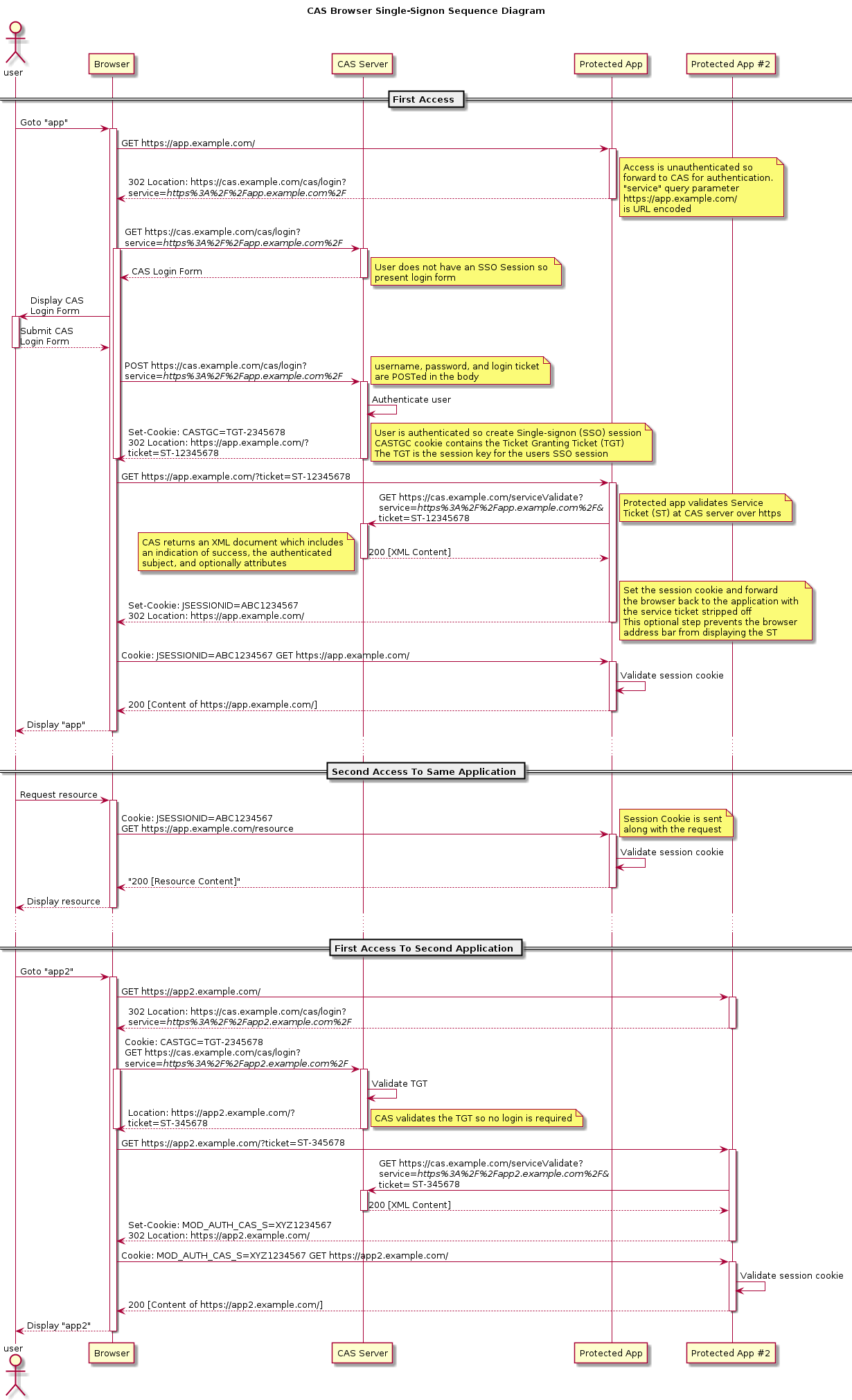

官网给出的认证流程如下，

TGC，TGT，ST 之类的概念就不说了，网上一搜一大堆，简单来说就是访问网站后没登陆就跳到 cas 认证中心，登录完会在浏览器存一个 cookie 叫 TGC（用来标识你登陆过了，以及后续获取 ticket），跳转到你的服务上，并且 url 后面会携带一个 ticket，也就是 ST，client 接收到这次请求后（一般是通过 filter 拦截地址，而地址默认是 /cas/login，当然也可以自己设置），会把 ticket 发送给 cas server 去验证，验证通过后返回 xml 结构的用户信息。

# 后端流程

前后端分离对接 CAS 的流程一般是前端负责跳转登录页面，并且接收登录之后返回的 ticket，将其传给后端，后端在接收到 ticket 之后进行验证，验证成功后返回给前端一个标识，用来判断接下来的请求是否已经认证。
后端认证的话有两种方式，一种是通过 cas-client-core 或者 Spring Security 进行配置，配置完之后只需要给前端 /login 接口和 /logout 接口即可，当然这个地址也可以用过 setFilterProcessesUrl 来自定义。
另一种方式自己写一个接口，直接请求 CAS Server 的验证票据接口，认证成功后返回给前端一个 token，证明已经认证成功。

# 一、Spring Security 代码实现

# 1. Spring Security 配置

@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true, securedEnabled = true)
public class CasSecurityConfig extends WebSecurityConfigurerAdapter {
    @Value("${cas.server-host-url}")
    private String serverHostUrl;
    @Value("${cas.server-host-login-url}")
    private String serverHostLoginUrl;
    @Value("${cas.client-host-url}")
    private String clientHostUrl;
    @Autowired
    private CustomUserDetailsService customUserDetailsService;
    @Autowired
    private CustomAuthenticationEntryPoint unAuthenticationEntrypoint;
    @Autowired
    private LogoutSuccessHandlerImpl logoutSuccessHandler;
    @Autowired
    private CasAuthenticationSuccessHandler casAuthenticationSuccessHandler;
    @Autowired
    private JwtAuthenticationTokenFilter authenticationTokenFilter;


    @Override
    protected void configure(HttpSecurity httpSecurity) throws Exception {
        httpSecurity
                .cors().disable()
                .csrf().disable()
                // 过滤请求
                .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS).and()
                .authorizeRequests()
                .antMatchers(
                        HttpMethod.GET,
                        "/*.html",
                        "/**/*.js",
                        "/profile/**",
                        "/error",
                        "/api/**",
                        "/**/*.css",
                        "/**/*.png",
                        "/**/*.jpg",
                        "/**/*.jpeg",
                        "/**/*.gif",
                        "/**/*.ico",
                        "/font/**"
                ).permitAll()
                .antMatchers("/swagger-ui.html").anonymous()
                .antMatchers("/swagger-resources/**").anonymous()
                .antMatchers("/*/api-docs").anonymous()
                .antMatchers("/druid/**").anonymous()
                // 除上面外的所有请求全部需要鉴权认证
                .anyRequest().authenticated()
                .and()
                .headers().frameOptions().disable();
        httpSecurity.exceptionHandling()
                .authenticationEntryPoint(unAuthenticationEntrypoint).and()
                .addFilterAt(casAuthenticationFilter(), CasAuthenticationFilter.class)
                .addFilterBefore(authenticationTokenFilter, CasAuthenticationFilter.class)
                .addFilterBefore(logoutFilter(), LogoutFilter.class)
                .addFilterBefore(singleSignOutFilter(), CasAuthenticationFilter.class);
    }

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        super.configure(auth);
        auth.authenticationProvider(casAuthenticationProvider());
    }

    @Bean
    public CasAuthenticationEntryPoint authenticationEntryPoint() {
        CasAuthenticationEntryPoint casAuthenticationEntryPoint = new CasAuthenticationEntryPoint();
        casAuthenticationEntryPoint.setLoginUrl(serverHostLoginUrl);
        casAuthenticationEntryPoint.setServiceProperties(serviceProperties());
        return casAuthenticationEntryPoint;
    }

    @Bean
    @Override    public AuthenticationManager authenticationManagerBean() throws Exception {
        return super.authenticationManagerBean();
    }

    @Bean
    public ServiceProperties serviceProperties() {
        ServiceProperties serviceProperties = new ServiceProperties();
        serviceProperties.setService(clientHostUrl + "/login");
        serviceProperties.setAuthenticateAllArtifacts(true);
        return serviceProperties;
    }

    @Bean
    public TicketValidator ticketValidator() {
        return new Cas20ProxyTicketValidator(serverHostUrl);
    }

    @Bean
    public CasAuthenticationProvider casAuthenticationProvider() {
        CasAuthenticationProvider provider = new CasAuthenticationProvider();
        provider.setServiceProperties(this.serviceProperties());
        provider.setTicketValidator(this.ticketValidator());
        provider.setAuthenticationUserDetailsService(customUserDetailsService);
        provider.setKey("CAS_PROVIDER_KEY");
        return provider;
    }

    @Bean
    public CasAuthenticationFilter casAuthenticationFilter() throws Exception {
        CasAuthenticationFilter casAuthenticationFilter = new CasAuthenticationFilter();
        casAuthenticationFilter.setAuthenticationManager(authenticationManager());
        casAuthenticationFilter.setFilterProcessesUrl("/login");
        casAuthenticationFilter.setAuthenticationSuccessHandler(casAuthenticationSuccessHandler);
        return casAuthenticationFilter;
    }


    @Bean
    public SecurityContextLogoutHandler securityContextLogoutHandler() {
        return new SecurityContextLogoutHandler();
    }

    @Bean
    public LogoutFilter logoutFilter() {
        LogoutFilter logoutFilter = new LogoutFilter(logoutSuccessHandler,
                securityContextLogoutHandler());
        logoutFilter.setFilterProcessesUrl("/logout");
        return logoutFilter;
    }

    @Bean
    public SingleSignOutFilter singleSignOutFilter() {
        SingleSignOutFilter singleSignOutFilter = new SingleSignOutFilter();
        singleSignOutFilter.setIgnoreInitConfiguration(true);
        return singleSignOutFilter;
    }

}

# 2. 修改登录跳转

因为项目是前后端分离的方式，肯定是不会出现用户自行访问后端接口地址，然后跳转登录页面的情况，所以就需要修改 authenticationEntryPoint，使其返回一个登录地址，让前端去跳转。

@Component
public class CustomAuthenticationEntryPoint implements AuthenticationEntryPoint {

    // 配置文件中的 CAS 服务器地址
    @Value("${cas.server-host-login-url}")
    private String serverHostLoginUrl;

    // 配置文件中的本应用前端地址
    @Value("${cas.client-host-url}")
    private String clientHostUrl;

    /**
     * 处理未登录或登录超时的逻辑，因为项目前后端分离，此处直接返回一串地址，跳转至 CAS 端进行登录，
     */
    @Override
    public void commence(HttpServletRequest request, HttpServletResponse response, AuthenticationException authException) throws IOException, ServletException {
        // 构造未登录情况需要跳转的 login 页面 url
        // 登录地址（指定的一个后台 controller 接口）
        String encodeUrl = URLEncoder.encode(clientHostUrl + "/login", "utf-8");
        // CAS 认证中心页面地址，参数 service 带上登录地址，登录成功后会带上 ticket 跳转回 service 指定的地址
        String redirectUrl = serverHostLoginUrl + "?service=" + encodeUrl;
        response.setStatus(HttpServletResponse.SC_OK);
        response.setHeader("content-type", "application/json;charset=UTF-8");
        response.setCharacterEncoding("UTF-8");
        PrintWriter out = response.getWriter();
        // 返回与前端约定的格式，前端能获取到 redirectUrl 跳转即可
        Result<String> unauthorized = Result.unauthorized(redirectUrl);
        out.write(JSON.toJSONString(unauthorized));
    }

}

前端设置了全局拦截器后，这样不管请求什么接口，一旦状态码为 401，就会自动跳转到登录地址。

# 3. 实现基于 Jwt 认证

@Component
public class JwtAuthenticationTokenFilter extends OncePerRequestFilter {
    @Autowired
    private TokenService tokenService;

    @Override
    protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
            throws ServletException, IOException {
        CasUserInfo casUserInfo = tokenService.getCasUser(request);
        Authentication authentication = SecurityContextHolder.getContext().getAuthentication();
        if (ObjectUtils.isNotEmpty(casUserInfo) && ObjectUtils.isEmpty(authentication)) {
            tokenService.verifyToken(casUserInfo);
            UsernamePasswordAuthenticationToken authenticationToken = new UsernamePasswordAuthenticationToken(casUserInfo, null, casUserInfo.getAuthorities());
            authenticationToken.setDetails(new WebAuthenticationDetailsSource().buildDetails(request));
            SecurityContextHolder.getContext().setAuthentication(authenticationToken);
        }
        chain.doFilter(request, response);
    }
}

# 3. 登录成功处理

这一步是为了修改原本的成功跳转，改为生成 JWT token，并存储在 cookie 中。

@Service
public class CasAuthenticationSuccessHandler extends SavedRequestAwareAuthenticationSuccessHandler {
   private RequestCache requestCache = new HttpSessionRequestCache();

   @Autowired
   private TokenService tokenService;
   @Value("${cas.web-url}")
   private String webUrl;

   /**
    * 令牌有效期（默认 30 分钟）
    */
   @Value("${token.expireTime}")
   private int expireTime;

   @Override
   public void onAuthenticationSuccess(HttpServletRequest request, HttpServletResponse response,
                              Authentication authentication) throws ServletException, IOException {
      String targetUrlParameter = getTargetUrlParameter();
      if (isAlwaysUseDefaultTargetUrl()
            || (targetUrlParameter != null && StringUtils.hasText(request.getParameter(targetUrlParameter)))) {
         requestCache.removeRequest(request, response);
         super.onAuthenticationSuccess(request, response, authentication);
         return;      }
      clearAuthenticationAttributes(request);
      CasUserInfo userDetails = (CasUserInfo) authentication.getPrincipal();
      String token = tokenService.createToken(userDetails);
      // 往 Cookie 中设置 token
      Cookie casCookie = new Cookie(Constants.TOKEN, token);
      casCookie.setMaxAge(expireTime * 60);
      casCookie.setPath("/");
      response.addCookie(casCookie);
      response.setContentType("application/json;charset=utf-8");
      PrintWriter writer = response.getWriter();
      writer.write(JSONObject.toJSONString(Result.success("登录成功",null)));
      // 登录成功后跳转到前端登录页面
//    getRedirectStrategy().sendRedirect(request, response, webUrl);
   }
}

# 4. 单点登出

刚开始对接的时候，不知道是前端使用了异步请求导致后端无法正常重定向，还是本身就不好实现，登出跳转总是出问题，所以干脆改成返回 json，再由前端跳转，和登录的步骤基本一致

@Configuration
public class LogoutSuccessHandlerImpl implements LogoutSuccessHandler {
    @Autowired
    private TokenService tokenService;
    @Value("${cas.server-host-url}")
    private String casServerHostUrl;
    @Value("${cas.client-host-url}")
    private String casClientHostUrl;

    /**
     * 退出处理
     *
     * @return
     */
    @Override
    @SneakyThrows
    public void onLogoutSuccess(HttpServletRequest request, HttpServletResponse response, Authentication authentication) {
        CasUserInfo casUserInfo=tokenService.getCasUser(request);
        if (ObjectUtils.isNotEmpty(casUserInfo)) {
            // 删除用户缓存记录
            tokenService.delLoginUser(casUserInfo.getToken());
        }
        String url = casServerHostUrl + "/logout?service=" + casClientHostUrl;
        JSONObject jsonObject = new JSONObject();
        jsonObject.put("logoutUrl", url);
        ServletUtils.renderString(response, JSON.toJSONString(Result.success("退出成功",jsonObject)));
//        response.sendRedirect(this.casServerHostUrl + "/logout?service=" + this.casClientHostUrl);
    }
}

# 5. 前端工作

前端需要做的是，根据后端返回的 json 跳转到登录页面，还有将登录成功后得到的 ticket 传给后端，以及从 cookie 里拿 token 并放在 header 里面。

# 二、serviceValidate 配置

这种方式就是直接去请求 CAS Server 提供的一个票据验证的接口，后端这边没啥要做的，就是请求接口，解析返回的 xml 数据，并且给前端一个 token 即可。这边直接拿 JeecgBoot 里面的代码看一下。

@Slf4j
@RestController
@RequestMapping("/sys/cas/client")
public class CasClientController {

   @Autowired
   private ISysUserService sysUserService;
   @Autowired
    private ISysDepartService sysDepartService;
   @Autowired
    private RedisUtil redisUtil;

   @Value("${cas.prefixUrl}")
    private String prefixUrl;


   @GetMapping("/validateLogin")
   public Object validateLogin(@RequestParam(name="ticket") String ticket,
                        @RequestParam(name="service") String service,
                        HttpServletRequest request,
                        HttpServletResponse response) throws Exception {
      Result<JSONObject> result = new Result<>();
      log.info("Rest api login.");
      try {
         String validateUrl = prefixUrl+"/p3/serviceValidate";
         String res = CasServiceUtil.getStValidate(validateUrl, ticket, service);
         log.info("res."+res);
         final String error = XmlUtils.getTextForElement(res, "authenticationFailure");
         if(StringUtils.isNotEmpty(error)) {
            throw new Exception(error);
         }
         final String principal = XmlUtils.getTextForElement(res, "user");
         if (StringUtils.isEmpty(principal)) {
               throw new Exception("No principal was found in the response from the CAS server.");
           }
         log.info("-------token----username---"+principal);
          //1. 校验用户是否有效
         SysUser sysUser = sysUserService.getUserByName(principal);
         result = sysUserService.checkUserIsEffective(sysUser);
         if(!result.isSuccess()) {
            return result;
         }
         String token = JwtUtil.sign(sysUser.getUsername(), sysUser.getPassword());
         // 设置超时时间
         redisUtil.set(CommonConstant.PREFIX_USER_TOKEN + token, token);
         redisUtil.expire(CommonConstant.PREFIX_USER_TOKEN + token, JwtUtil.EXPIRE_TIME*2 / 1000);

         // 获取用户部门信息
         JSONObject obj = new JSONObject();
         List<SysDepart> departs = sysDepartService.queryUserDeparts(sysUser.getId());
         obj.put("departs", departs);
         if (departs == null || departs.size() == 0) {
            obj.put("multi_depart", 0);
         } else if (departs.size() == 1) {
            sysUserService.updateUserDepart(principal, departs.get(0).getOrgCode());
            obj.put("multi_depart", 1);
         } else {
            obj.put("multi_depart", 2);
         }
         obj.put("token", token);
         obj.put("userInfo", sysUser);
         result.setResult(obj);
         result.success("登录成功");

      } catch (Exception e) {
         //e.printStackTrace();
         result.error500(e.getMessage());
      }
      return new HttpEntity<>(result);
   }


}

需要注意的一点是，不同协议的票据验证地址是不一样的，比如 CAS3.0 的是 /p3/serviceValiate，CAS2.0 的则没有前面的 p3，而 1.0 的地址则是 /validate，并且接收的参数和返回的结构也有一些差别。

更新于
